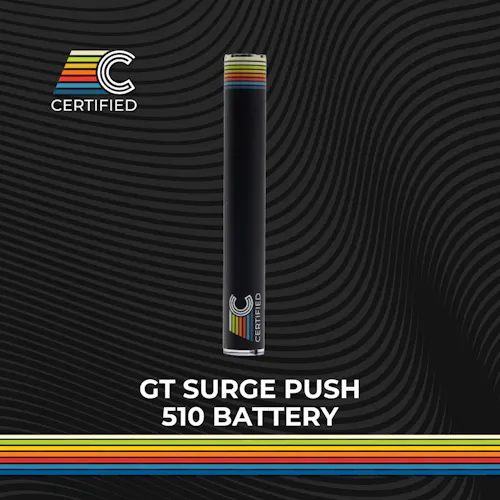

GT Battery 510

ABOUT:

• Rechargeable Battery with USB Adapter

• Button Push Activated

• Preheating Functionality

• Built-in LED Indicator Light

• Standard 510 Thread

—

SPECS:

• 3 variable heat options to optimize user experiences

• Voltage output: 2.8V/White, 3.2V/Blue, 3.7V/Red

• Battery capacity: 310-400mAh (Multiple options available)

• Diameter: 10.5mm – Length: 80.3mm – Weight: 16.5g

• Resistance tolerance range: 1.0 – 3.5 ohm

—

USAGE

• Charge battery before use.

• Turn 510 threaded cartridge clockwise onto battery.

• DO NOT overtighten.

• Push button rapidly 5X to turn ON/OFF. (Note: LED light will flash when battery is turned ON/OFF).

• Push button rapidly 3X to alternate between 3 heat settings. (Default: White: Low 2.8V, Blue: Medium 3.2V, Red: High 3.6V)

• Pre-heating – Push button rapidly 2X (Note: LED light will change colours). • • Push button 1X to quit pre-heating.

• When ready to use, press and hold the button and inhale through the mouthpiece.

• Remove cartridge & turn off battery when not in use.

—

CHARGING

• Turn battery clockwise into the USB charger provided. If you have a battery with a micro or usb-c charge port, simply plug in to charge

• DO NOT use other USB chargers.

• DO NOT overtighten.

• USB indicator light: Red = charging, Green = charged.

—

STORAGE CONDITIONS

• Store in a cool, dry place between 4 – 30 °C (39 – 86 °F).

—

TROUBLESHOOTING

• Cartridge Connectivity Issue –

• Remove cartridge and reattach lightly.

• Low Battery Indication – LED will flash 10X.

• Restricted Airflow – Preheat for 5 seconds before vaping.
